Cycle Modeling

Loading Fluids

Two type of fluid model backends are supported - Clapeyron.jl and CoolProp.jl.

To load a Clapyeron.jl backend fluid model do the following:

using CarnotCycles, Clapeyron
fluid = cPR(["isopentane","isobutane"],idealmodel = ReidIdeal)
load_fluid(fluid)

As of now we support Clapeyon mixtures of up to 2 components.

For CoolProp.jl backend fluid properties simply pass the fluid name as a string as follows:

using CarnotCycles, CoolProp
load_fluid("R601")

NOTE

Once the fluid model is chosen through the simulation the underlying components are chosen based on the fluid model.

Carnot Cycle

As the name of this package is CarnotCycles.jl, we would first like to model a simple Carnot Cycle using CoolProp.jl even though it is not really physically possible to have one.

His cycle follows a isothermal exapansion of the gas, isentropic expansion, isothermal compression , and finally isentropic compression.

So we will use Clapeyron.jl for our gas model. Here we choose the gas to be Argon.

using CarnotCycles, ModelingToolkit, Clapeyron, SteadyStateDiffEq

fluid = cPR(["Argon"],idealmodel = ReidIdeal)
load_fluid(fluid)
@independent_variables t

The we choose our processes as components and connect them. A source and sink is recommended to initiate and close the cycle.

@named source = MassSource()
@named isothermal_comp =  IsothermalCompressor()
@named isentropic_comp = IsentropicCompressor()
@named isothermal_exp = IsothermalExpander()
@named isentropic_exp = IsentropicExpander()
@named sink = MassSink()

eqs = [
    connect(source.port,isothermal_exp.inport)
    connect(isothermal_exp.outport,isentropic_exp.inport)
    connect(isentropic_exp.outport,isothermal_comp.inport)
    connect(isothermal_comp.outport,isentropic_comp.inport)
    connect(isentropic_comp.outport,sink.port)
]

systems = [source,isothermal_exp,isentropic_exp,isothermal_comp,isentropic_comp,sink]

@named CarnotCycle = System(eqs, t, systems=systems)
@time sys = mtkcompile(CarnotCycle)

Now we state the point at source

πc_1 = 5; πc_2 = 6
source_mdot = 30 #g/s
z_source = CarnotCycles.mass_to_moles(fluid,1,source_mdot)
source_temp = 600; source_pressure = 101325*30;

para = [
    source.source_temperature => source_temp, source.source_mdot => source_mdot, source.source_x => 1, source.source_pressure => source_pressure,
    isothermal_exp.πc => πc_1,
    isentropic_exp.πc => πc_2, isentropic_exp.η => 1,
    isothermal_comp.πc => πc_1,
    isentropic_comp.πc => πc_2, isentropic_comp.η=>1
]
u0 = []
prob = SteadyStateProblem(sys,u0,para)
sol = solve(prob)

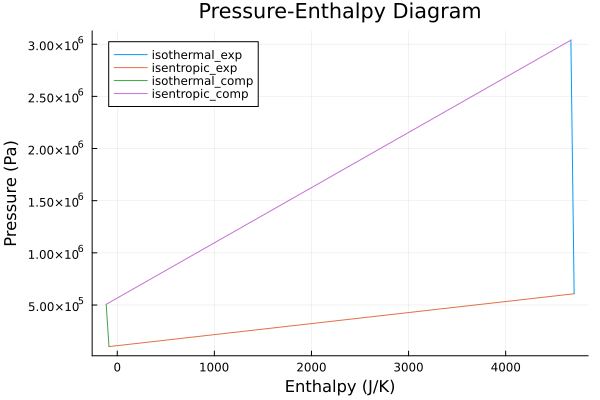

To plot the diagram just pass the systems and sol with the adjecent names of the components as a string. Pass the systems and the name string in the same order. The name string should be without source and sink.

system_string = ["isothermal_exp","isentropic_exp","isothermal_comp","isentropic_comp"]
plot(sol,systems,system_string,type = :PH,phase = false)

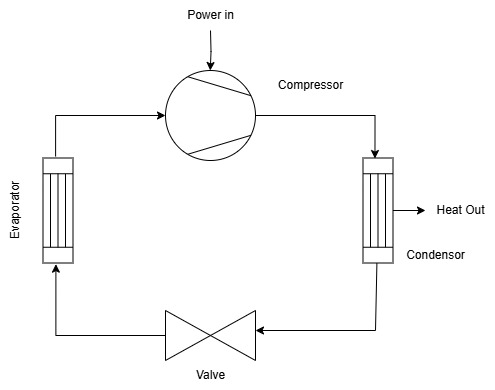

Vapour Compression Cycle

Now we move to modeling a simple Vapour Compression Cycle.

We first start by loading the adequate packages and the fluid:

using CarnotCycles, CoolProp, ModelingToolkit, SteadyStateDiffEq
@independent_variables t
load_fluid("R134A")

Then we define the source thermodynamic state - the starting point of the cycle.

ΔT_sh = 5
p_ = 101325*5; T_ = PropsSI("T","Q",1,"P",p_,"R134A") + ΔT_sh

The we choose the adequate components for the vapour compression cycle:

@named source = MassSource()
@named compressor = CarnotCycles.IsentropicCompressor()
@named condensor = CarnotCycles.SimpleCondensor()
@named valve = Valve()
@named evaporator = SimpleEvaporator()
@named sink = MassSink()

Then we connect them in necessary order:

systems = [source, compressor,condensor,valve,evaporator,sink]
eqs = [
        connect(source.port,compressor.inport)
        connect(compressor.outport,condensor.inport)
        connect(condensor.outport,valve.inport)
        connect(valve.outport,evaporator.inport)
        connect(evaporator.outport,sink.port)
]

@named VCC = System(eqs,t,systems = systems)
sys = mtkcompile(VCC)

Then we choose the parameters of the system:

para = [
    source.source_pressure => p_, source.source_temperature => T_, source.source_mdot => 0.02,
    compressor.πc => 3, compressor.η => 0.7,
    condensor.ΔT_sc => 3,
    valve.πc => compressor.πc,
    evaporator.ΔT_sh => ΔT_sh,
]

Then we proceed to solve the problem:

u0 = []
prob = SteadyStateProblem(sys,u0,para)
sol = solve(prob)

To get the Coeffecient of Performace of the cycle:

julia> COP = sol[condensor.Qdot]/sol[compressor.P]
-5.096928812859646

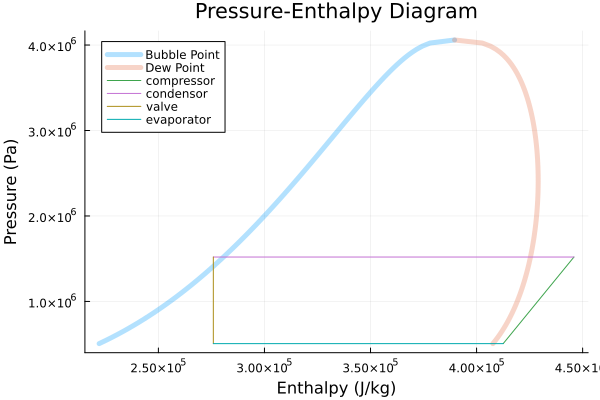

For plotting the phase diagram

system_string = ["compressor","condensor","valve","evaporator"]
CarnotCycles.plot(sol,systems,system_string,type = :PH,phase = true)

NOTE

Energy given to the fluid is +ve while given by the fluid is -ve. Hence the COP is negative

Otto Cycle

Otto's Cycle is described by parallel isentropic processes which are interlinked by isochoric processes. See Otto Cycle.

To simulate this with the CarnotCycles.jl we can do as follows:

using Clapeyron, CarnotCycles, ModelingToolkit, SteadyStateDiffEq

import CarnotCycles: t

fluid = cPR(["Argon"],idealmodel = ReidIdeal)

load_fluid(fluid)


@named source = MassSource()
@named compressor = IsentropicCompressor()
@named isochoric_compressor = IsochoricCompressor()
@named expander = IsentropicExpander()
@named isochoric_expander = IsochoricExpander()
@named sink = MassSink()

eqs = [
    connect(source.port,compressor.inport)
    connect(compressor.outport,isochoric_compressor.inport)
    connect(isochoric_compressor.outport,expander.inport)
    connect(expander.outport,isochoric_expander.inport)
    connect(isochoric_expander.outport,sink.port)
]

systems = [source,compressor,isochoric_compressor,expander,isochoric_expander,sink]
@named system = System(eqs,t,systems = systems)
@time sys = mtkcompile(system)

Choosing the parameters:

para = [
    source.source_pressure => 1e5, source.source_temperature => 300.0, source.source_mdot => 20.0, source.source_x => 1.0,
    compressor.η => 1.0, compressor.πc => 5.0,
    isochoric_compressor.πc => 3.0,
    expander.η => 1.0, expander.πc => compressor.πc,
    isochoric_expander.πc => isochoric_compressor.πc,
]
u0 = []
prob = SteadyStateProblem(sys,u0,para)
sol = solve(prob)

To see all states in the cycle

system_string = ["compressor","isochoric_compressor","expander","isochoric_expander"]
show_all_states(sol,systems,system_string)

Results in printing the output in the terminal

--------------------------------------
Component: compressor
Temperature in : 300.0 K  , Temperature out : 571.1362731703207 K
Pressure in : 100000.0 Pa  , Pressure out : 500000.0 Pa
Enthalpy : 16.266350232763216 J  , Enthalpy out : 2836.6280843423797 J
Entropy : -19.49595286245431 J/K  , Entropy out : -19.495952862454324 J/K
Mass Flow Rate : 20.0 g/s  , Mass Flow Rate out : 20.0 g/s
Mass fraction : 1.0 , Mass fraction out : 1.0
--------------------------------------
--------------------------------------
Component: isochoric_compressor
Temperature in : 571.1362731703207 K  , Temperature out : 1710.8971638025928 K
Pressure in : 500000.0 Pa  , Pressure out : 1.5e6 Pa
Enthalpy : 2836.6280843423797 J  , Enthalpy out : 14713.554713239335 J
Entropy : -19.495952862454324 J/K  , Entropy out : -12.641777207302466 J/K
Mass Flow Rate : 20.0 g/s  , Mass Flow Rate out : 20.0 g/s
Mass fraction : 1.0 , Mass fraction out : 1.0
--------------------------------------
--------------------------------------
Component: expander
Temperature in : 1710.8971638025928 K  , Temperature out : 898.7834079229091 K
Pressure in : 1.5e6 Pa  , Pressure out : 300000.0 Pa
Enthalpy : 14713.554713239335 J  , Enthalpy out : 6251.801609047419 J
Entropy : -12.641777207302466 J/K  , Entropy out : -12.641777206993057 J/K
Mass Flow Rate : 20.0 g/s  , Mass Flow Rate out : 20.0 g/s
Mass fraction : 1.0 , Mass fraction out : 1.0
--------------------------------------
--------------------------------------
Component: isochoric_expander
Temperature in : 898.783407922909 K  , Temperature out : 300.0443884959337 K
Pressure in : 300000.0 Pa  , Pressure out : 100000.0 Pa
Enthalpy : 6251.801609047419 J  , Enthalpy out : 16.729409232186228 J
Entropy : -12.641777206993057 J/K  , Entropy out : -19.494409446636574 J/K
Mass Flow Rate : 20.0 g/s  , Mass Flow Rate out : 20.0 g/s
Mass fraction : 1.0 , Mass fraction out : 1.0
--------------------------------------

Solution Viewing

There are generally two ways:

1. Printing the output on the terminal using show_all_states(sol,systems,system_string)
2. Plotting the necessary diagram
